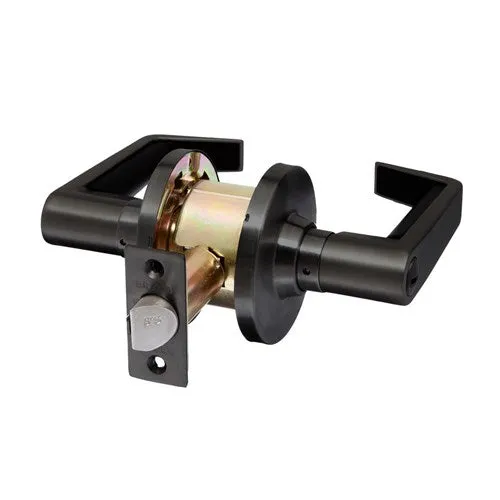

BRAVA Metro EL6000 series commercial grade privacy leverset.
BCA AS1428.1 -2009 compliant leverset.
Privacy function
- Outside opened by lever when free. Can be unlocked in an emergency situation with a coin or screw driver.
- Inside opened by lever at all times, external lever locked with push button from inside.
Additional info
- Automatic kick off.
- Cylindrical fixing.
- Boxed and colour coded.
- BCA compliant.
- Fire rated.
- Finished in matt black.
| Door thickness | 35-45 mm |
| Backset | 70 mm |
|
max. Lever / knob projection distance may not include turnsnib |
63.7 mm |
| Strike | 70 mm x 27 mm x 1.2 mm |
| Latch | 70 mm |
| Latch face plate | 57 mm x 25 mm |
| Door handing | Non-handed knobs/levers |
| Rose | 75 mm |
Technical Specifications
| Brand | BRAVA |
| AS1428.1 Compliant Lever (AS1428.1CO) | Yes |
| Finish | Matt Black |
| Function | Privacy |
| Lock Grade | Commercial |
| Lock Type | Cylindrical |
| Rose Diameter (in mm) | 75 |
| Suits Door Thickness | 35 mm to 45 mm |
| Backset | 70 mm |
